BTH BOLTE Drawn Arc Stud Welding Gun GD-15 Welding

Max Size Up to a Diameter of 15 mm

Whatsapp: +86 13818731663

Wechart: 630531309

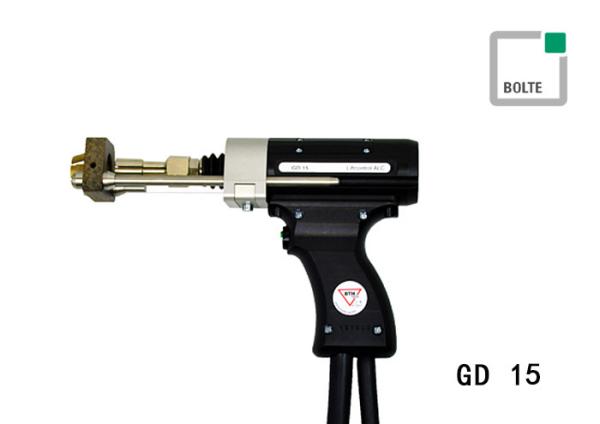

The stud welding gun GD 15 is designed for drawn arc stud welding up to a diameter of 15 mm. The adjustable lift (adjustment range: 0-2,5 mm) and the adjustable hydraulic piston damper enable the perfect set up for each welding task. In connection with the piston with linear ball track, the ample-dimensioned welding cable (cable cross section: 35 mm²) and the automatic length compensation the new GD 15 guarantees always perfect welding results.
Highlight of the new gun is the integrated travel measuring system (optional). Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud travel (lift, piston runtime, immersion depth) for each weld.
The GD 15 convinces by easy handling, high reliability and an ergonomic design. The robust construction ensures a smooth running even under stringent conditions.

• adjustable lift (raster 0,1 mm) with large adjustment range (0-2,5 mm)
• continuously adjustable hydraulic piston damper to regulate the immersion speed of the stud into the welding pool
• welding cable with cable cross-section 35 mm²
• automatic length compensation system for different stud lengths and surface conditions
• optional: integrated travel measuring system

• highest operational repeatability, high welding quality, high reliability
• simple handling
• quick and simple retooling
• extremely quick welding sequences by reinforced solenoid
• all stud types weldable (special chuck might be required)
• piston with linear ball track
• high service life through high-grade mechanical components
• robust housing made from impact resistant, full-insulating plastics
• 50 mm² welding cable plugs in order to prevent burnt contacts
• precision guidance protected from welding spatters
• electronically controlled automatic lift
• ergonomic design

    Shanghai Yichen Industrial advanced German-made stud welding machines to provide guidance and technical services to many Chinese companies. In the automotive industry, electrical cabinet industry, elevator industry, bridge construction industry, large signage industry, glass cladding building，air-conditioning cabinet industry and many other industries have a large number of customers.
