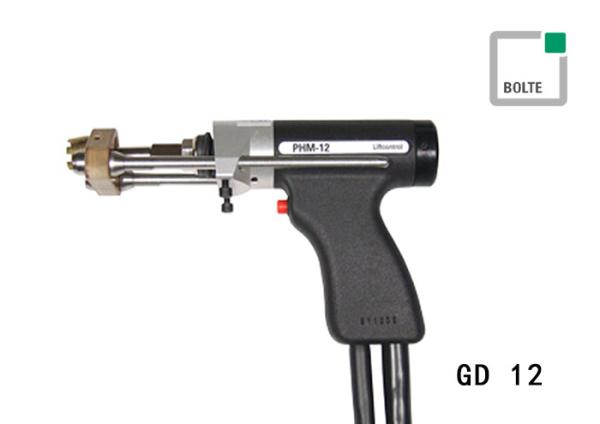

BTH BOLTE Drawn Arc Stud Welding Guns PHM-161
Compact Stud Welding Gun
Whatsapp: +86 13818731663
Wechart: 630531309
The compact stud welding gun PHM-161 is designed for drawn arc stud welding. It guarantees optimum welding results and repeatability and is very easy to use. For flexible adjustment to different welding tasks a comprehensive range of accessories is available. The PHM-161 stands out through its robust construction and high reliability. Its ergonomic design and low weight assure tireless working. It is equipped as standard with an adjustable hydraulic damper to regulate the immersion speed of the stud into the welding pool.
| Welding range | Ø 3-16 mm |
| Welding material | steel, stainless steel |
| Stud length | 10-500 mm |
| Welding method (acc. to DIN EN ISO 14555) | drawn arc (ceramic ferrule and inert gas) |
| Lift | 2 mm |
| Welding cable | 5 m, 50 mm² |
| Control cable plug | 7-pin |
| Dimensions (WxHxL) | 67x172x255 mm |
| Weight (without cable) | 1,7 kg |
| Item number | B-80-35-2716 |
All drawn arc stud welding guns at a glance
| PHM-10 | PHM-12 | PHM-160 | PHM-161 | GD 12 | GD 15 | GD 16 | GD 19 | GD 22 | GD 25 | |||
| Welding method | ||||||||||||
| Drawn arc (ceramic ferrule) | x | x | x | x | x | x | x | x | x | |||
| Short cycle | x | x | ||||||||||
| Drawn arc (inert gas) | o | o | o | o | o | o | o | o | o | |||
| Welding range (Ø mm) | ||||||||||||
| Drawn arc (ceramic ferrule) | 3-12 | 3-16 | 3-16 | 3-12 | 3-15 | 3-16 | 3-19 | 3-22 | 3-25 | |||
| Short cycle | 2-10 | 3-12 | ||||||||||
| Drawn arc (inert gas) | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | |||
| Welding material | ||||||||||||
| Steel | x | x | x | x | x | x | x | x | x | x | x | |
| Stainless steel | x | x | x | x | x | x | x | x | x | x | x | |
| Lift (mm) | ||||||||||||
| constant | 1,5 | 2 | 2 | 2 | ||||||||
| adjustable | 0-2,5 | 0-2,5 | 0-2,5 | 0-4 | 0-4 | 0-6 | 0-6 | |||||
| Piston damper (adjustable hydraulic) | x | x | x | x | x | x | ||||||
| Integrated travel measuring system | o | o | o | o | o | o | o | |||||
| Automatic length compensation | x | x | x | x | x | x | x | x | x | x | x | |
| Piston guide | ||||||||||||
| Slide-bearing | x | x | ||||||||||
| Linear ball track | o | o | x | x | x | x | x | x | x | x | x | |
| Welding cable | ||||||||||||
| cross-section (mm2) | 35 | 35 | 50 | 50 | 35 | 35 | 35 | 50 | 95 | 95 | 120 | |
| length (m) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 2 | 2 | 2 | |
| Welding cable | ||||||||||||
| inside | x | x | x | x | x | x | x | x | ||||
| outside | x | x | x | |||||||||
| Control cable plug | 7-pin | 7-pin | 7-pin | 7-pin | 12-pin | 12-pin | 12-pin | 12-pin | 12-pin | 12-pin | 12-pin | |
| Housing from impact resistant plastics | x | x | x | x | x | x | x | x | x | x | x | |
| Protection of piston guidance from welding spatters | x | x | x | x | x | x | x | x | x | x | x | |
| Dimensions | ||||||||||||
| Width (mm) | 40 | 55 | 67 | 67 | 57 | 57 | 57 | 68 | 68 | 68 | 68 | |
| Height (mm) | 130 | 130 | 172 | 172 | 163 | 163 | 163 | 180 | 180 | 180 | 180 | |
| Length (mm) | 183 | 173 | 255 | 255 | 180 | 195 | 180 | 260 | 260 | 295 | 295 | |
| Weight without cable (kg) | 0,8 | 0,95 | 1,7 | 1,7 | 1,4 | 1,5 | 1,45 | 1,86 | 1,86 | 2,45 | 2,45 | |
| x = Standard, o = Option | ||||||||||||
|
|
