The materia lspecifications conform with DIN EN ISO 13918 and DIN EN ISO 14555.Forwelding studs from other materials please send us you rinquiry or contact us. On demand, the material properties can be verified by an inspection document (test report,inspection certificate) according to DIN EN 10204. We are pleased to inform you about weldability to different base materials and welding parameters.

Dimensions

Welding studs dimensions are given in the measurement tables (all dimensions in mm).All standardised welding studs conform to DIN EN ISO 13918. Not standardised welding studs are supplied according to DIN EN ISO 13918. Special welding elements, which are not described, are delivered upon request. Dimensions that are not listed in the measurement tables are delivered upon request.

Surface protection

Standardly our welding studs made fro msteel 4.8 are supplied with an electrolytic copper plating of 4- 8 µm (according to DIN EN ISO 4042) as corrosion protection.Other surface treatments are possible upon request.

Threads

The threads of the studs are cold rolled (tolerance limit 6g). For surface-treated studs the tolerance limit 6h can be reached. We deliver studs with special threads upon request.

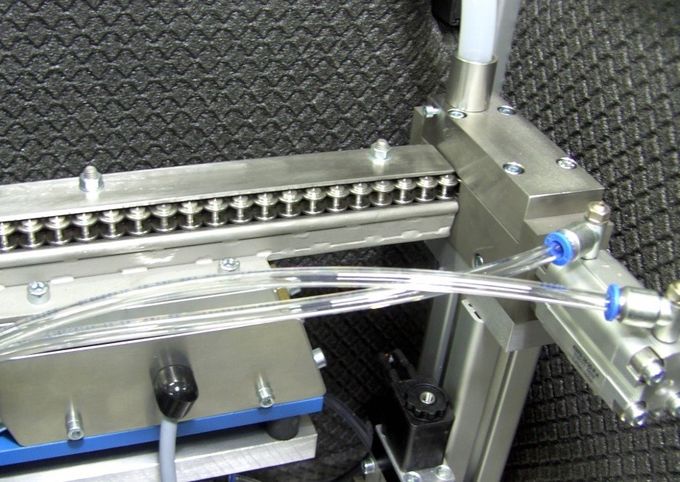

Stud flange

Welding studs for capacitor discharge stud welding have a cold formed flange. The diameter oft he flange is always bigger than the external diameter of the welding element (see following drawings and measurement tables). The flange prevents the electric arc to flash over to the cylindrical part of the welding elemsent and increases the welding area. By this, a high strength of the stud welded joint is
guaranteed. Upon request, it is possible to deliver welding studs with flange dimensions other than the ones listed and welding studs without flange. However, we can only recommend the limited use of welding studs without flange–depending on the welded joint requirements. Please contact us for this.
