    PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins

    Ask Lasest Price
    Brand Name : BTH BOLTE
    Model Number : PIM-1B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 5 working days after received your payment
    • Product Details
    • Company Profile

    PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins

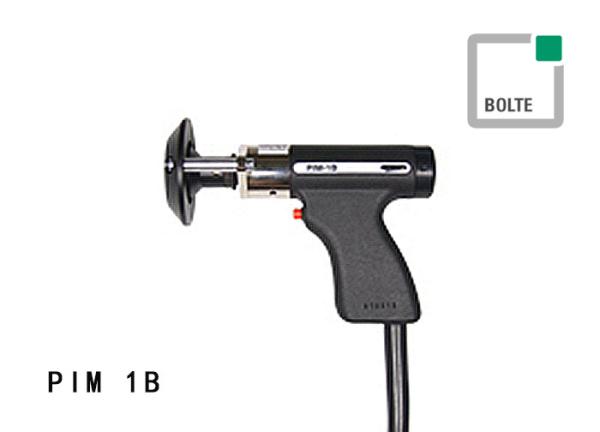

    BTH Capacitor discharge stud welding guns PIM-1B


    compact stud welding gun


    Whatsapp: +86 13818731663
    Wechart: 630531309


    The PIM-1B is a compact stud welding gun (welding method: capacitor discharge (contact)) for welding cupped head pins (insulation nails with clip) to fasten insulation mats. The cupped head pins are put onto the chuck and pushed through the insulation mat. At a certain surface pressure the welding is automatically triggered.The PIM-1B stands out through its simple handling, its robust construction and its high reliability. Its ergonomic design and low weight assure tireless working.


    Welding rangeØ 2-4 mm
    Welding materialsteel, stainless steel
    Stud lengthany
    Welding method
    (acc. to DIN EN ISO 14555)
    capacitor discharge (contact method)
    Welding cable10 m, 25 mm²
    Control cable plug7-pin
    Dimensions (WxHxL)40x130x193 mm
    Weight (without cable)0,9 kg
    Item numberB-90-10-2114

    • very well suited for welding on problematic surfaces (e.g. zinc, tinder)
    • spring pressure adjustable
    • indication of adjusted spring pressure in sight window
    • automatic triggering of welding procedure when correct surface pressure of cupped head pin to base material is reached
    • highest operational repeatability, high welding quality, high reliability
    • simple handling
    • high service life through high-grade mechanical components
    • robust housing made from impact resistant, full-insulating plastics
    • 50 mm² welding cable plugs in order to prevent burnt contacts
    • precision guidance protected from welding spatters
    • ergonomic design
    • compact construction
    • low weight

    All capacitor discharge stud welding guns at a glance



    PKM-1B PHM-1A PIM-1B
    Welding method
    Capacitor discharge (contact)xx
    Capacitor discharge (gap)x
    Application range
    Threaded studs, tapped studs, non-threaded studs, insulation nails, earth plugs, double earth plugsxx
    Cupped head pinsx
    Welding range (Ø mm)
    Capacitor discharge (contact)2-102-4
    Capacitor discharge (gap)2-10
    Welding material
    Steelxxx
    Stainless steelxxx
    Aluminiumx
    Brassx
    Spring pressure adjustablexx
    Spring pressure displayxx
    Lift adjustablex
    Lift displayx
    Piston guide
    Slide-bearingxxx
    Linear ball trackoo
    Welding cable
    -cross-section (mm2)252525
    -length (m)6,5310
    Control cable plug7-pin7-pin7-pin
    Housing from impact resistant plasticsxxx
    Protection of piston guidance from welding spattersxxx
    Dimensions
    Width (mm)404040
    Height (mm)130130130
    Length (mm)183183193
    Weight without cable (kg)0,70,70,9
    x = Standard, o = Option
