| Brand Name : | Bolte BTH |
| Model Number : | Foot piece |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 PCS per month |
| Delivery Time : | 15 working days after received your payment |
Bolte BTH Foot Piece
Accessories for Stud Welding Gun PHM-12, PHM-112
Whatsapp: +86 13818731663
Wechart: 630531309
| Description: | Field of application: |
| Foot piece/ferrule grip open | Bent stud, J-bolt stud, curved stud |
| Ø | for ceramic ferrule | Item number |
| 9,6 | RF 5, RF 6, PF 6, UF 4, UF 5, UF 6 | 83-43-007-MS |
| 11,3 | RF 8, PF 8, UF 8 | 83-43-008-MS |
| 14,8 | RF 10, KSR-F 8, KSR-F 10, KSP-F 8, PF 10, KSN-F 10, UF 10 | 83-43-009-MS |
| 16,5 | RF 12, KSP-F 10, PF 12, UFN 10, UF 12 | 83-43-010-MS |
| 19,9 | RF 16, KSP-F 12, PF 16, KSN-F 12, UF 13, KF 15x3, KF 15x5 | 83-43-011-MS |
| Description: | Field of application: |

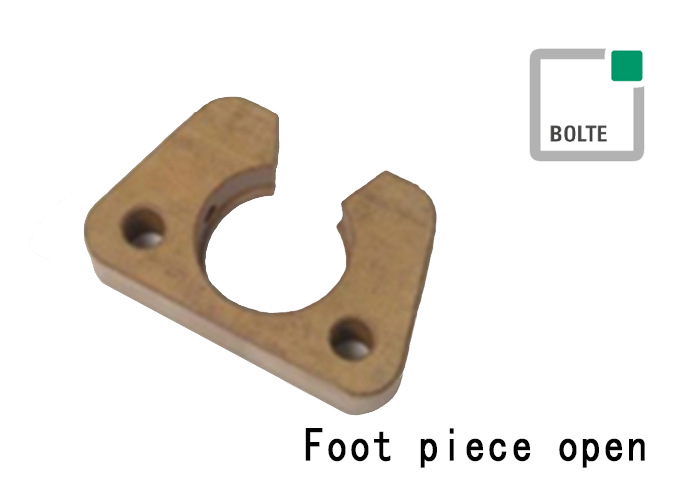

| Foot piece open | Shear connectors |
| Ø | Height (mm) | Width (mm) | Item number |
| 22 | 43 | 67 | 83-43-022 |
| 29 | 43 | 67 | 83-43-029 |
| Description: | Field of application: |

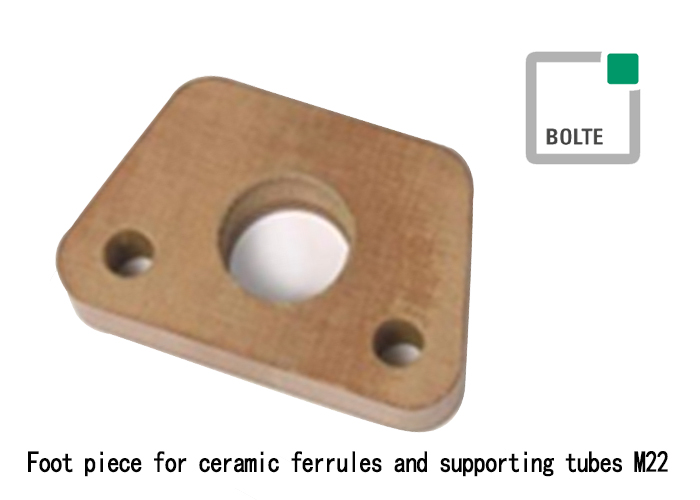

| Foot piece for ceramic ferrules and supporting tubes M22 | e.g. for permanent ceramic ferrules |
| Ø | Height (mm) | Width (mm) | Item number |
| M22 | 43 | 67 | 83-41-022-M22 |
|
|
