DUOFIX - Battery-Powered Stud Welding Unit for Mounting of Heat Cost Allocators

BTH DUOFIX - Battery-Powered Stud Welding Unit for Mounting of Heat Cost Allocators

Whatsapp: +86 13818731663
Wechart: 630531309

DUOFIX is a battery-powered stud welding unit with double welding gun for simultaneous welding of two studs. The battery operation enables mobile use without electrical power supply. With DUOFIX two studs M3 for the mounting of heat cost allocators are simultaneously welded. Stud spacing can be adjusted variably. A separate ground connection is not necessary.
With a weight of just 4,6 kg (unit incl. gun) DUOFIX is especially light. The unit is integrated into a robust carrying case, which offers much space for additional tools, welding studs and accessories.
DUOFIX is very easy and comfortable to use. The integrated battery offers a capacity of 500 double welds. With a life period of approx. 1000 charging cycles it is extremely long-lasting. The newly developed double welding gun offers a range of innovative functions, which significantly facilitate daily work.
Alternatively (e.g. when the battery is empty), DUOFIX can be operated at every power socket. Optionally, a cable for charging directly at the 12V on-board socket of a motor vehicle is available.

Welding range	2 x M3
Welding material	steel, stainless steel, aluminium
Welding sequence	2 double welds/min
Stud spacing (continuously adjustable)	19-63 mm
Battery capacity	up to 500 double welds (optional: up to 700 double welds)
Battery life	approx. 1000 charging cycles
Battery charging time	4 hours
Weight (unit incl. gun)	4,6 kg
Weight of gun	0,6 kg
Total weight (unit incl. gun and carrying case)	6,9 kg
Unit dimensions (W x L x H)	170 x 125 x 198 mm
Gun dimensions (W x L x H)	30 x 92 x 130 mm
Carrying case dimensions	400 x 200 x 240 mm
Gun cable length	1,2 m (optional: 2,1 m)
External power adapter (for charging/welding from mains)	100-240 V, 50/60 Hz, 2250 mA

lightweight

only 4,6 kg (unit incl. welding gun)
→ 30% lighter than comparable competitor units!

integrated in practical and convenient carrying case

offers plenty of room for additional tools, wear parts and welding studs
with robust carrying handle and padded carrying strap
custom-fit sorting boxes for stud holders and studs are included edge protection
total weight incl. carrying case: 6,9 kg

LCD display at the top of the unit

easy to read
display of welds performed (welding counter resettable)
display of welds still possible
charging state indicator (colour changing of the display)

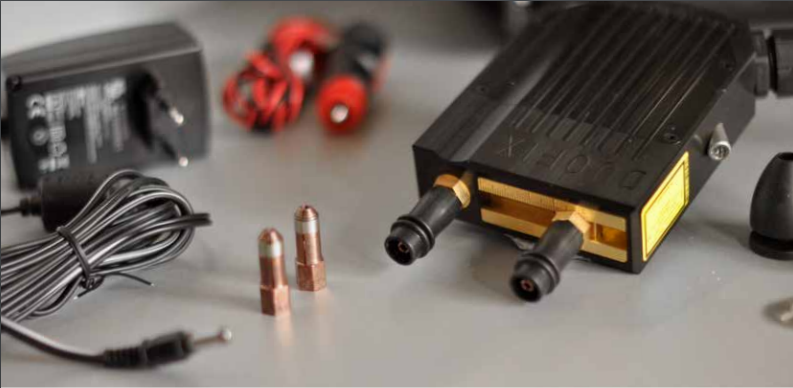

convenient welding gun with innovative features

laser alignment aid for precise stud positioning
integrated air level for exact adjustment
scale on the gun for easy setting of the stud spacing (19-63 mm)
automatic triggering of the double welding operation
Alternatively, the welding operation can be triggered in a controlled way be pressing a button. This function can quickly be activated or deactivated.
lexible and robust welding gun cable (length: 1,2 m (optional 2,1 m))
integrated splash, arc and sound guards
easy to maintain and robust design

powerful

perfect welds of very high strength
battery capacity: up to 500 double welds
→ 150% more capacity than comparable competitor units!
optional: high-performance battery with a capacity of up to 700 double welds

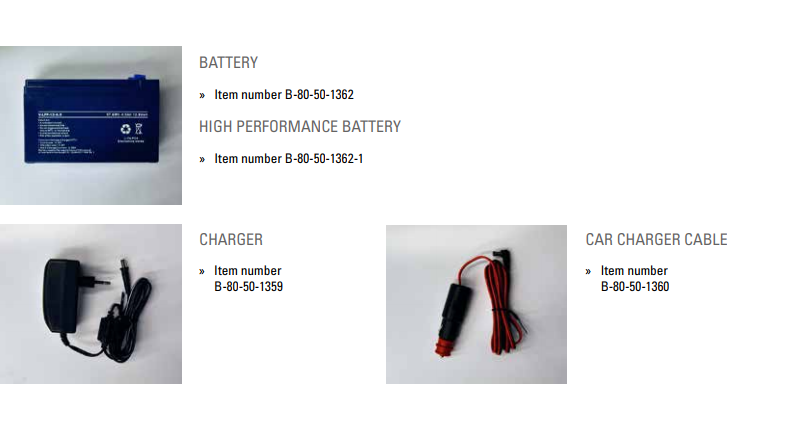

long-lasting high-end lithium battery

Battery life approx. 1000 charging cycles!

full battery charge from mains in only 4 hours

easy, tool-less change of battery

optional: charging directly at the 12V on-board socket of a motor vehicle

efficient energy management

automatic stand-by mode (after 30 minutes)
automatic shut-down (after 60 minutes)

mains operation

Alternatively (e.g. when the battery is empty), the DUOFIX can be operated at every power socket.

very easy to use

utmost safety

electronic function control
self-diagnosis system
automatic function test
repeat cycle lock to avoid welding on already welded studs
battery deep discharge protection

optionally available without carrying case

The very compact unit (dimensions: 170 x 125 x 198 mm) fits easily into any tool case!

high quality, durable stainless steel unit body
